BREAK LIGHT LED TRIANGLE FLASH REVERSING

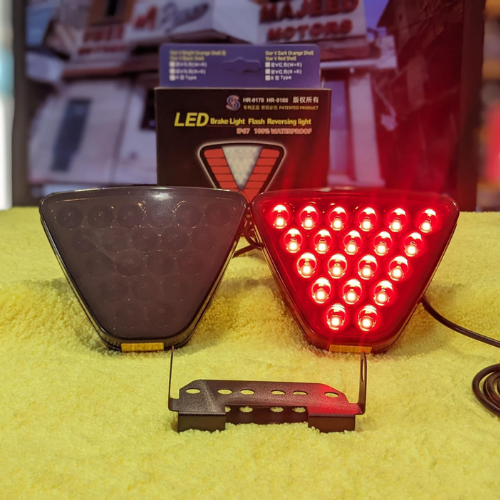

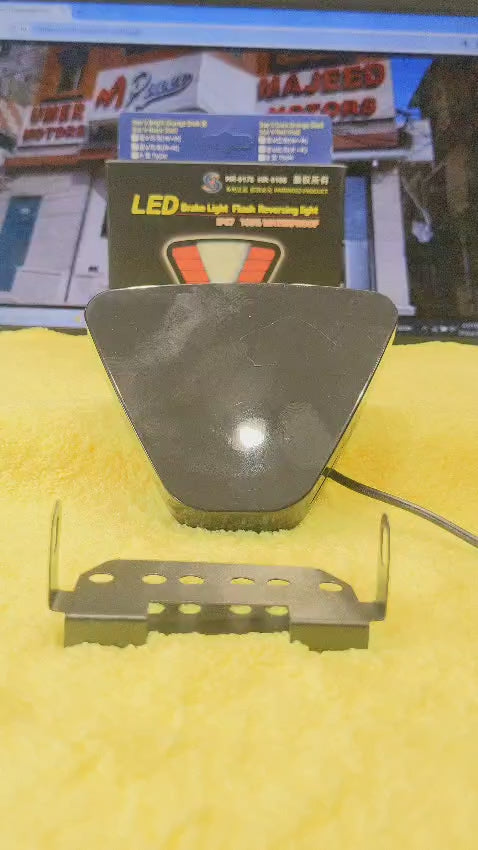

Universal LED Triangle Brake Light (12V, Waterproof)

Overview

This universal triangle LED light integrates brake, flash (hazard), and reversing functions into a single, 12 V waterproof module. Its compact triangular design makes it ideal for mounting on trailers, trucks, caravans, service vehicles and roadside emergency kits. The bright red LEDs ensure high visibility in all weather conditions, while the waterproof housing guarantees reliable performance even in heavy rain or washes.



Technical Specifications

Parameter	Specification
Input Voltage	12 V DC
LED Color	Red (Brake/Flash), White (Reverse)
Power Consumption	1.2 W (Brake), 1.5 W (Flash), 0.8 W (Reverse)
Waterproof Rating	IP67
Housing Material	UV-resistant ABS plastic
Lens Material	Polycarbonate
Mounting Holes	3 × 6 mm (or magnets model)
Connector	3-pin sealed plug (male/female)
Operating Temperature	–40°C to +85°C
Dimensions (W×H×D)	180 × 160 × 25 mm



Key Features

• Easy three-in-one function: brake light, hazard flash, and reversing light
• 100% waterproof (IP67) for outdoor use
• Low power draw with high-lumen SMD LEDs
• Durable, UV-resistant ABS housing and shatterproof lens
• Universal mounting: pre-drilled holes or optional magnetic feet
• Sealed 3-pin connector for quick plug-and-play installation
• Wide operating temperature range for all climates



Installation Guide

1. Position the triangle light on a flat surface at rear center or a visible corner of the vehicle body.
2. Mark and drill three 6 mm holes (if not using magnets).
3. Secure with bolts and rubber washers to prevent vibration.
4. Plug in the 3-pin connector to your vehicle’s brake, turn/hazard, and reverse circuits:
• Pin 1: Brake (red wire)
• Pin 2: Hazard/Turn (yellow wire)
• Pin 3: Reverse (white wire)
5. Test each function: apply brake, activate hazards, and shift to reverse.
6. Seal around the housing edge with silicone if additional waterproofing is desired.



Use Cases

• Trailer rear triangle light for safer night towing
• Caravan emergency warning light while parked
• Service van hazard indicator during roadside stops
• Agricultural machinery rear lighting
• Backup light on utility trucks or box vans



Pros and Cons

Pros	Cons
Combines three lighting functions in one module	Requires wiring to three separate circuits
High visibility with low power consumption	Slightly deeper housing may protrude
Fully waterproof for year-round reliability	Universal fit may need custom brackets
Simple plug-and-play sealed connector	No built-in reflectors if unlit
Durable ABS housing resists impact and UV damage	Limited to 12 V systems



Maintenance & Care Tips

• Periodically clean lens with mild soap and water to maintain brightness.
• Inspect wiring and connectors for corrosion, especially after off-road use.
• Avoid high-pressure jets directly on the connector seal.
• Replace gasket or reapply silicone sealant if leaks appear.



OEM Compatibility & Fitment

While universal by design, ensure mounting surface is flat and sturdy. For factory-style integration:

• Use custom brackets or trim panels to recess the light into bodywork.
• Verify vehicle wiring harness capacity; use a 1 A fuse on each circuit.
• Check local regulations: some jurisdictions require separate reflectors if the light is off.



Looking Ahead

If you need a wiring diagram tailored to your vehicle model, guidance on adding reflective backing, or 3D-printed mounting adapters, just let me know.
